High-precision filling for carbonated and non-carbonated beverages in glass containers.
Glass remains the premium choice for many beverages—beer, sparkling water, wine, juices, and flavored drinks. But filling glass bottles presents unique challenges:
Foaming and carbonation loss in carbonated beverages.
Bottle fragility, leading to breakage and downtime.
Inconsistent fill levels, which impact shelf appeal and product quality.
Producers need equipment that balances speed, precision, and protection.

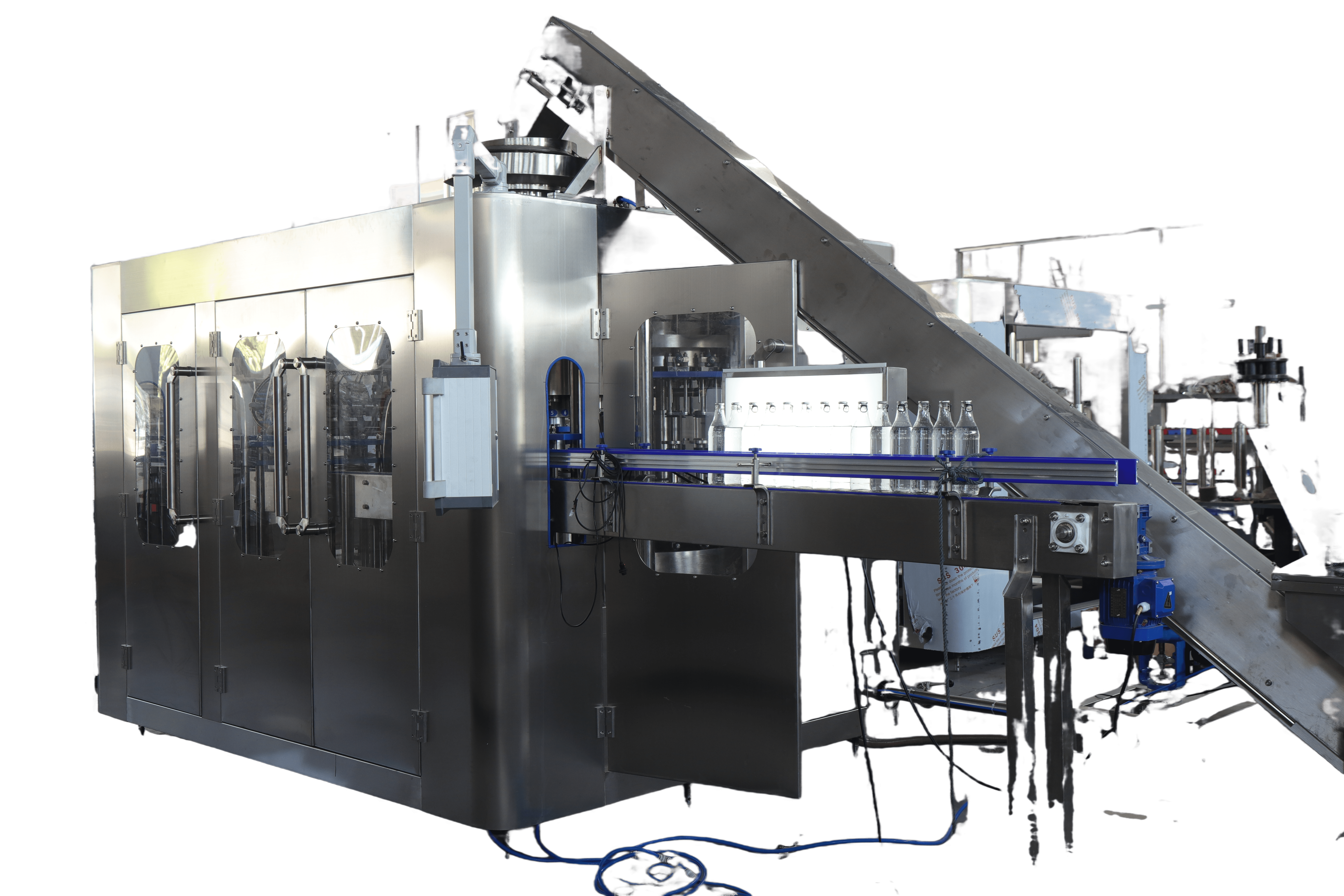

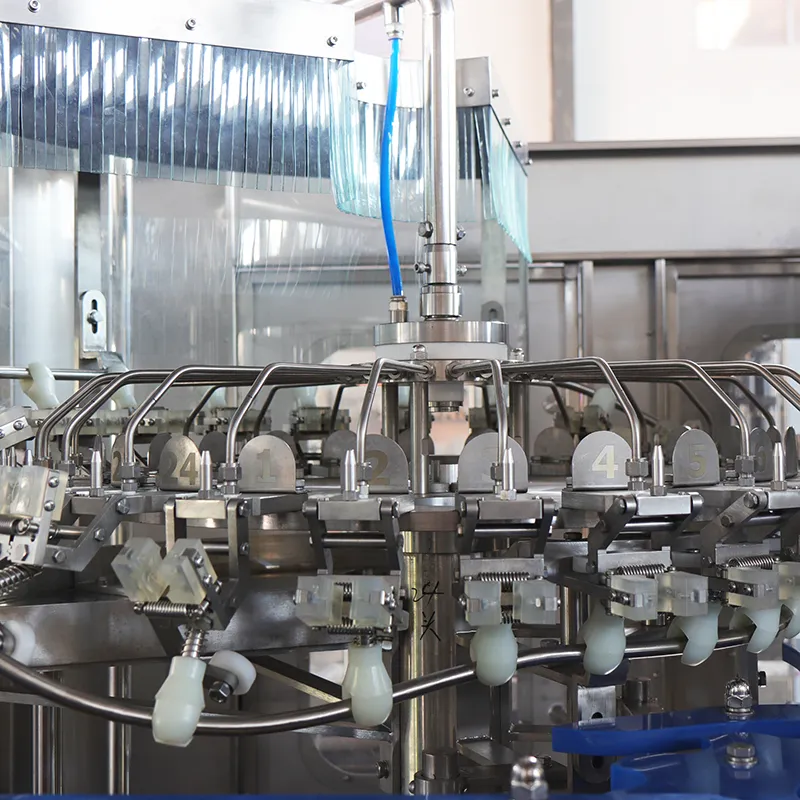

The ASFL 3-in-1 Glass Bottle Filling Machine integrates rinsing, filling, and capping into a single streamlined unit. Designed for both carbonated and still beverages, it uses vacuum-assisted filling technology and safety systems to deliver accurate fills, protect carbonation, and handle fragile bottles with care.
Wide Product Range – Handles carbonated soft drinks, beer, sparkling water, fruit juice, tea drinks, wine, and spirits.
Glass Bottle Compatibility – Suitable for both round and square bottles.
Flexible Filling Methods – Mechanical valve, flow meter, weight-based, or laser-level filling for maximum precision.
High-Speed Output – Production capacity from 3,500 to 18,000 bottles per hour.

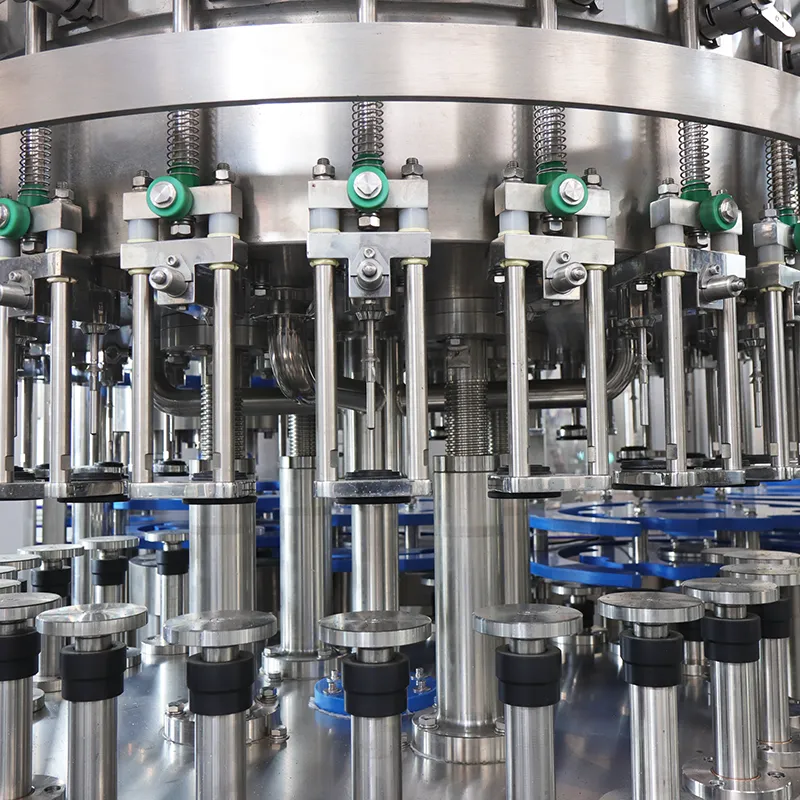

Vacuum Filling Technology – Single or double vacuum filling minimizes foaming and ensures product consistency.
Safety Functions – Automatic valve closure and broken glass washing system reduce downtime and protect operators.
Enhanced Hygiene – Hot water bubble pre-capping system ensures cleanliness and product safety.
From wineries and breweries to juice and soda producers, the ASFL Glass Bottle Filling Machine combines precision, reliability, and safety. Certified to ISO and CE standards, it enables beverage producers to maintain product integrity, reduce waste, and meet global quality demands.
Model |
Capacity (500ml, BPH) |
Suitable Bottle Shapes |
Bottle Volume (ml) |
Bottle Height (mm) |
Compressor Air |
Washing Medium |
Rinsing Pressure |
Total Power (KW) |
Machine Dimensions (m) |
Height (m) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
2016 /12/6 |
3500 – 4000 |
Glass round or square |
200 – 2000 |
160 – 320 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
4.61 |
2.5 × 1.9 |
2.5 |
3200 |
18-18-6 |
4500 – 6000 |
Glass round or square |
200 – 2000 |
160 – 320 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
4.61 |
2.8 × 2.15 |
2.5 |
4000 |
24-24-8 |
8000 – 12000 |
Glass round or square |
200 – 2000 |
160 – 320 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
5.41 |
3.1 × 2.5 |
2.5 |
4500 |
32-32-10 |
12000 – 14000 |
Glass round or square |
200 – 2000 |
160 – 320 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
6.41 |
3.8 × 2.8 |
2.5 |
6500 |
40-40-12 |
15000 – 18000 |
Glass round or square |
200 – 2000 |
160 – 320 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
9.63 |
4.5 × 3.3 |
2.6 |
8000 |
