Precision filling for carbonated beverages in glass containers.
Filling glass bottles with carbonated drinks is one of the most demanding processes in beverage production. Issues like foaming, inconsistent fill levels, or glass breakage can slow down the line, waste product, and compromise safety. Traditional machines often lack the precision or protective features needed for high-speed, high-quality glass filling.

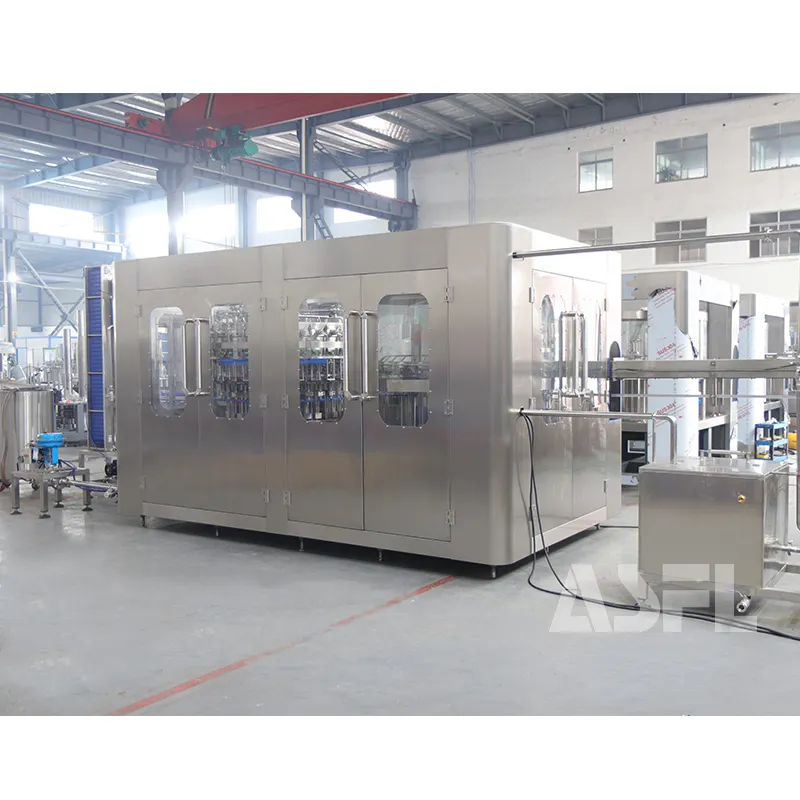

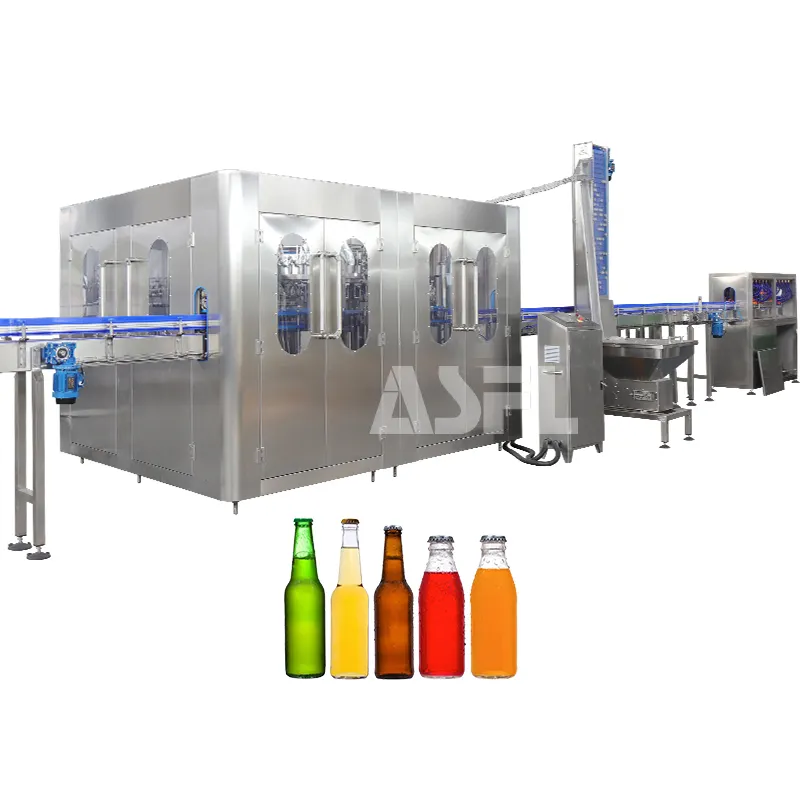

The ASFL 3-in-1 Carbonated Glass Bottle Filling Machine integrates rinsing, filling, and capping in one compact system. It is designed specifically for beer, carbonated soft drinks, sparkling water, wine, and flavored beverages packaged in glass containers. With vacuum-assisted filling and advanced bottle-handling features, it ensures both efficiency and safety on the production line.
Versatile Product Range – Handles beer, carbonated soft drinks, fruit juice, sparkling water, wine, and more.
Glass Bottle Compatibility – Supports both round and square glass bottles, adapting to different brand designs.

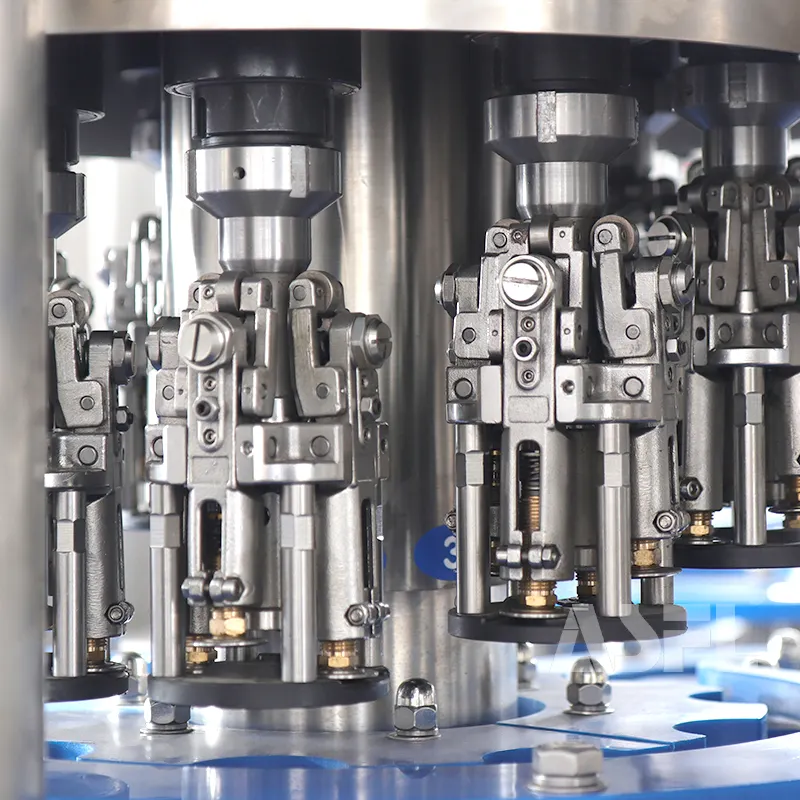

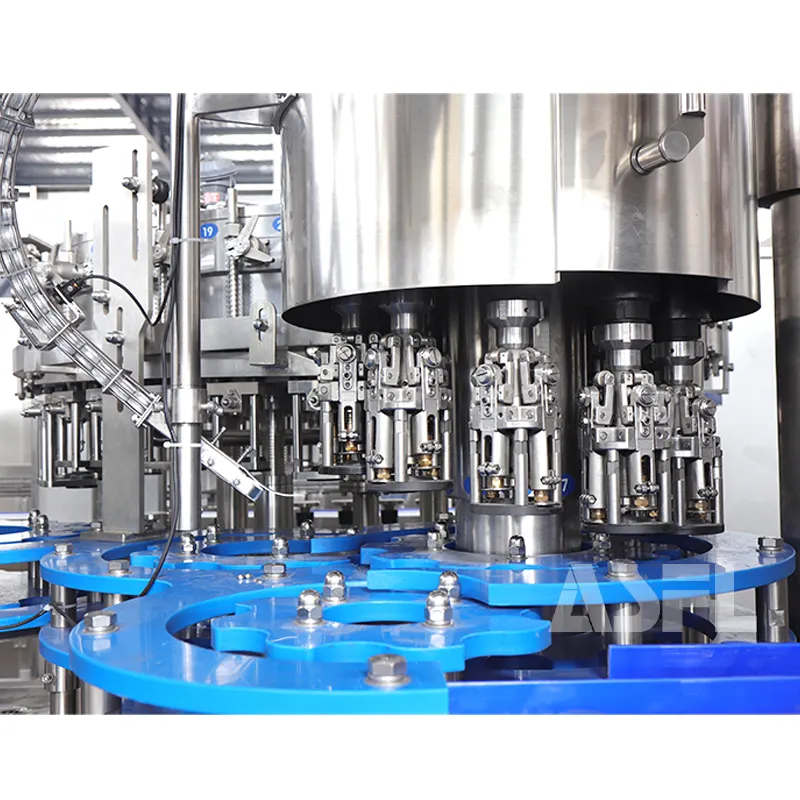

Multiple Filling Methods – Options include mechanical valve, flow meter, weight-based, or laser-level filling for maximum precision.
High-Speed Performance – Production capacity ranges from 3,500 to 18,000 bottles per hour, meeting both medium and large-scale demands.
Advanced Safety Design – Vacuum technology reduces foaming; automatic valve closure prevents spillage; glass breakage handling system minimizes downtime.
Enhanced Hygiene – Pre-capping hot water bubble ensures product cleanliness and stability.
From craft breweries to large-scale soda producers, ASFL carbonated glass bottle fillers combine speed, accuracy, and robust safety functions. Designed with ISO and CE compliance, they help beverage brands maintain consistent quality while maximizing efficiency.
| Model | 2016 /12/ 6 | 18 -18 -6 | 24 -24 -8 | 32 -32- 10 | 40 -40 -12 |
| Capacity (for 500 ml) | 3 500 -4 000 | 4 500 -6 000 | 8 000 -12 000 | 12 000 -14 000 | 15 000 -18 000 |
| Suitable bottle shapes | Glass round or square bottle | ||||
| Bottle volume | 200 -2000 ml | ||||
| Bottle height | 160 -320 mm | ||||
| Compressor air | 0.3 -0.7 Mpa | ||||
| Washing meidium | Aseptic water | ||||
| Rinsing pressure | >0.06 Mpa <0.2 Mpa | ||||
| Total power (KW) | 4. 61 | 4. 61 | 5. 41 | 6. 41 | 9. 63 |
| Machine dimensions (m) | 2.5* 1.9 | 2.8* 2.15 | 3.1* 2.5 | 3.8* 2.8 | 4.5* 3.3 |
| Height (m) | 2. 5 | 2. 5 | 2. 5 | 2. 5 | 2. 6 |
| Weight (kg) | 3 200 | 4 000 | 4 500 | 6 500 | 8 000 |
