Complete solution for large-capacity drinking water production.
In the bottled water industry, 5-gallon (18.9L) containers remain the standard for home and office delivery. But manual or semi-automatic lines often face issues such as slow production, inconsistent hygiene, contamination risk, and high labor costs. Large containers also require reliable cleaning and sealing to ensure long-term storage safety.

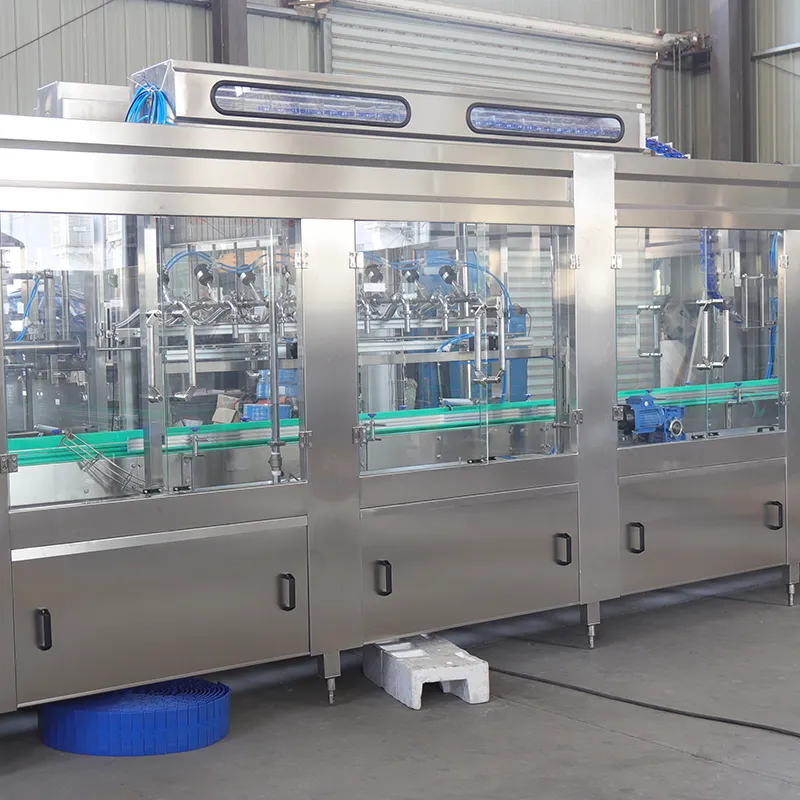

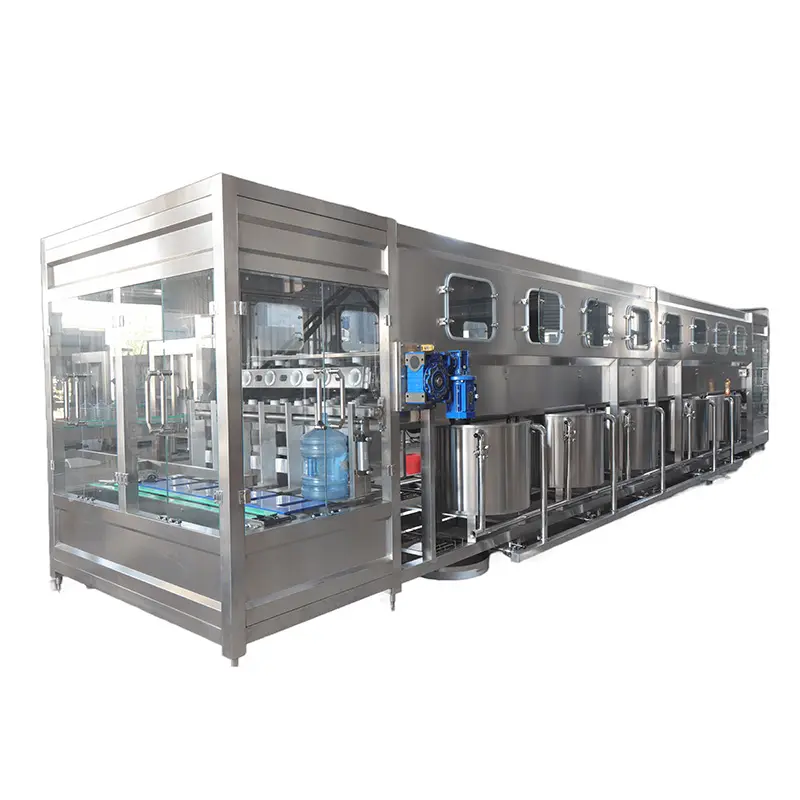

The ASFL 5 Gallon Water Filling Machine is a fully integrated system designed specifically for large-capacity bottled water production. From barrel loading, brushing, rinsing, filling, and capping to heat shrink labeling, inspection, bagging, and palletizing, every stage is automated and connected via a continuous conveying system. The result is a streamlined, hygienic, and highly efficient production line.
High-Speed Production – Capacity ranges from 100 to 1,200 barrels per hour, meeting both regional suppliers and large-scale water plants.
Comprehensive Integration – Includes barrel washing, filling, capping, labeling, inspection, and palletizing for a complete turnkey solution.

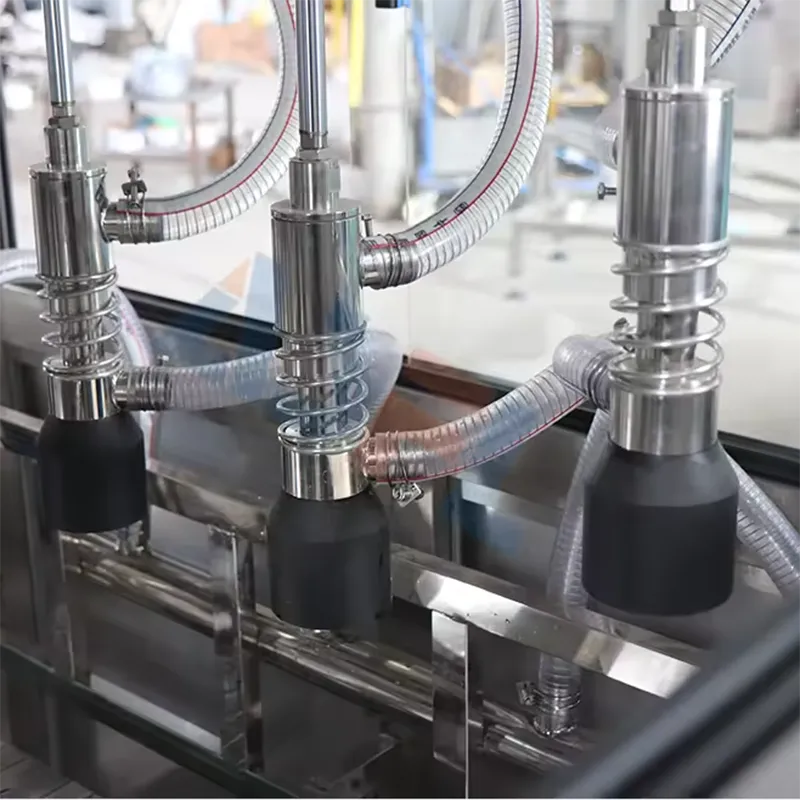

Precision Filling – Options for mechanical valve, flow meter, or laser-level filling ensure accurate volumes with minimal waste.

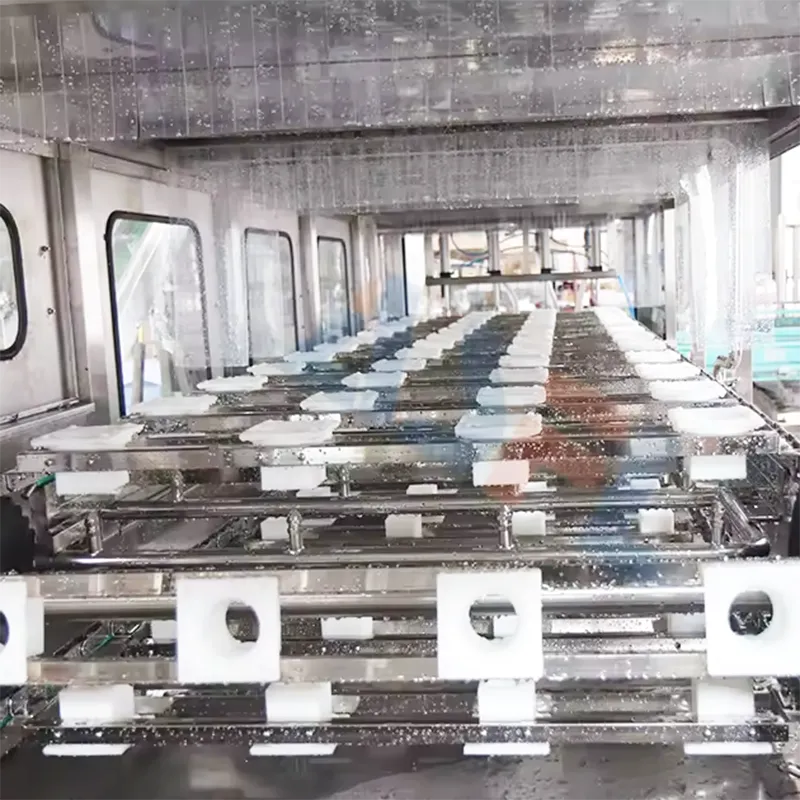

Enhanced Hygiene & Safety – Automatic washing and steam sterilization reduce contamination risks; enclosed systems protect product purity.
Labor Savings – Automation reduces reliance on manual handling, cutting costs and improving consistency.
Scalable & Customizable – Modular design allows easy expansion and adaptation to different production needs.
User-Friendly Operation – Touch-screen controls and PLC monitoring simplify setup and maintenance.
From municipal water suppliers to private-label bottling plants, the ASFL 5 Gallon Water Filling Machine helps producers deliver clean, safe, and consistent bottled water to homes and offices worldwide. With ISO and CE certification, it combines international standards with proven efficiency in the field.
Model |
QG F -150 |
QG F -300 |
QG F -450 |
QG F -600 |
QG F -900 |
Capacity (for 5 Gallon) |
150 BPH |
300 BPH |
450 BPH |
600 BPH |
900 BPH |
Suitable bottle shapes |
PET circular or square |
||||
Barrel specification |
Ф270X490mm |
||||
Filling capacity |
10~20L |
||||
Air consumption |
0.3-0.7Mpa |
||||
Rinsing pressure |
0.37 m3 /min |
||||
Total power (KW) |
1.75 |
3.8 |
5.5 |
7.5 |
9 |
Overall dimensions (M) |
2.5* 1.1 |
3.9* 1.5 |
3.9* 1.7 |
4* 2.1 |
4.5* 3.5 |
Height (M) |
1.6 |
1.7 |
1.7 |
1.7 |
3.2 |
Weight (KG) |
800 |
1 100 |
1 700 |
2 500 |
3 500 |
