High-speed precision filling for carbonated beverages in PET bottles.
Cola, soda water, and other carbonated beverages present unique challenges during bottling. Without the right technology, issues such as excess foaming, loss of carbonation, inconsistent fill levels, or bottle deformation can occur—causing product waste, downtime, and reduced shelf life.

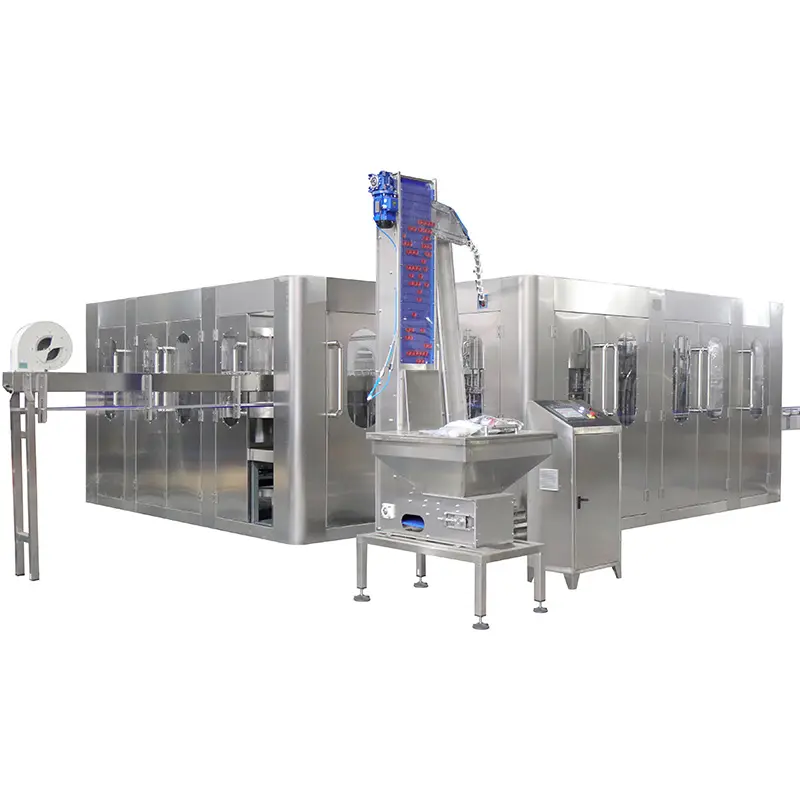

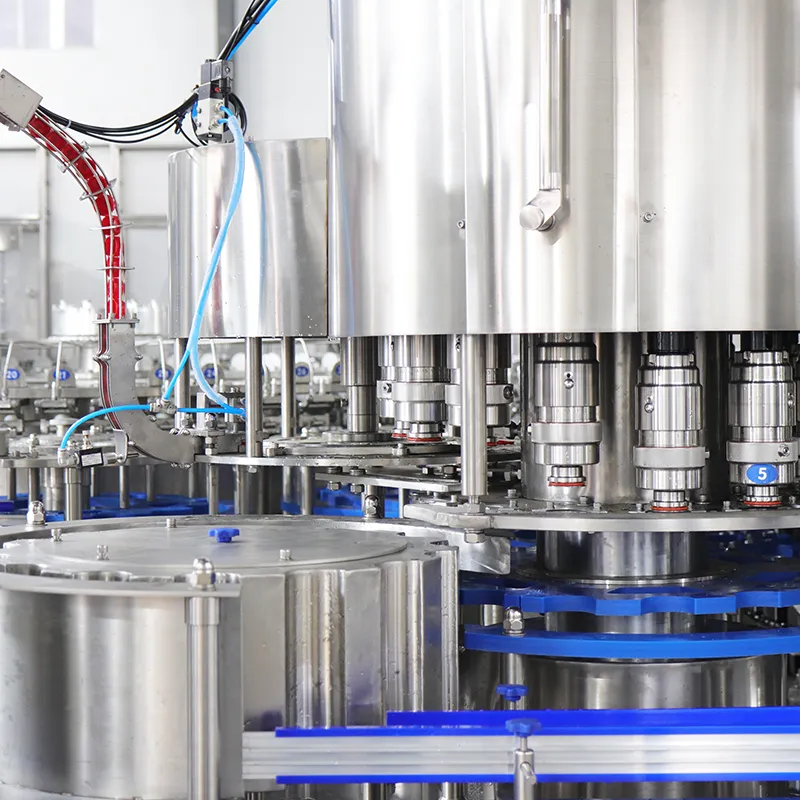

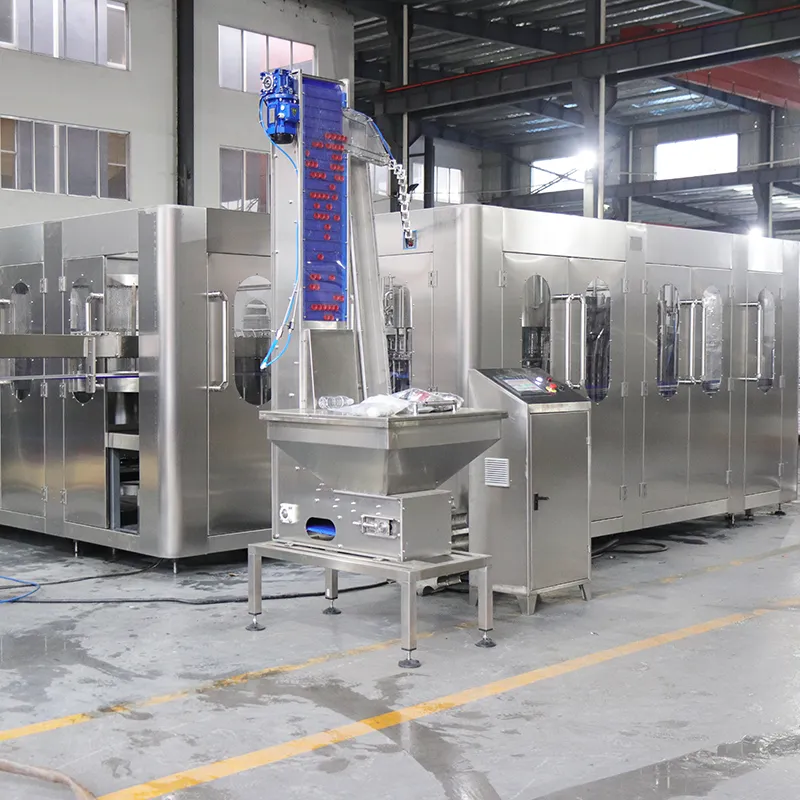

The ASFL Carbonated Soft Drink Filling Machine integrates rinsing, filling, and capping into a single automated system. Designed specifically for PET bottles of different shapes and sizes, it uses mechanical or electronic valve filling to maintain carbonation, reduce foaming, and deliver precise volumes at high speeds.
Wide Product Range – Ideal for cola, carbonated soft drinks, soda water, and energy drinks.
Precise Carbonation Control – Advanced filling valves manage CO₂ levels to maintain taste and freshness.
Flexible Filling Modes – Choose mechanical or electronic valve filling based on product requirements.
High-Speed Output – Production capacity from 2,000 to 24,000 bottles per hour, scaling from local producers to international brands.
Multi-Bottle Adaptability – Accommodates PET bottles in multiple shapes and capacities.
Hygienic & Safe – Sanitary design reduces contamination risk; robust construction ensures long-term reliability.
User-Friendly Operation – Touch-screen PLC controls for quick setup, easy monitoring, and reduced operator training.
From small bottlers to high-volume soda manufacturers, ASFL Carbonated Soft Drink Filling Machines help producers achieve consistent quality, minimal waste, and maximum efficiency. Certified to ISO and CE standards, our machines ensure your beverages stay fresh, fizzy, and ready for market.
Model |
Capacity (500ml, BPH) |
Suitable Bottle Shapes |
Suitable Bottle (mm) |
Rinsing Pressure |
Filling Pressure |
Total Power (KW) |
Overall Dimensions (m) |
Height (m) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
DC GF 16-12-6 |
3500 – 4000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
4.24 |
2.1 × 1.6 |
2.2 |
2500 |
DC GF 18-18-6 |
4500 – 6000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
5.03 |
2.45 × 1.8 |
2.2 |
3500 |
DC GF 24-24-8 |
8000 – 12000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
6.57 |
2.5 × 2.1 |
2.2 |
4500 |
DC GF 32-32-10 |
12000 – 14000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
8.63 |
3.5 × 2.3 |
2.25 |
6000 |
DC GF 40-40-12 |
15000 – 18000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
9.63 |
4 × 3 |
2.25 |
8000 |
DC GF 50-50-12 |
21000 – 24000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
12.5 |
5.5 × 4.5 |
2.25 |
10500 |
DC GF 60-60-15 |
26000 – 30000 |
Circular or square |
φ50 – φ108, H150–310 |
>0.06 Mpa <0.2 Mpa |
<0.4 Mpa |
15 |
7 × 6.5 |
2.25 |
13000 |
