Efficient and flexible solution for small-bottle water production.
Producing bottled water at scale requires speed, precision, and hygiene. Manual or semi-automatic systems often struggle with inconsistent fill levels, bottle compatibility, or contamination risks—leading to wasted product and higher costs. For producers handling multiple beverage types, flexibility is equally important.

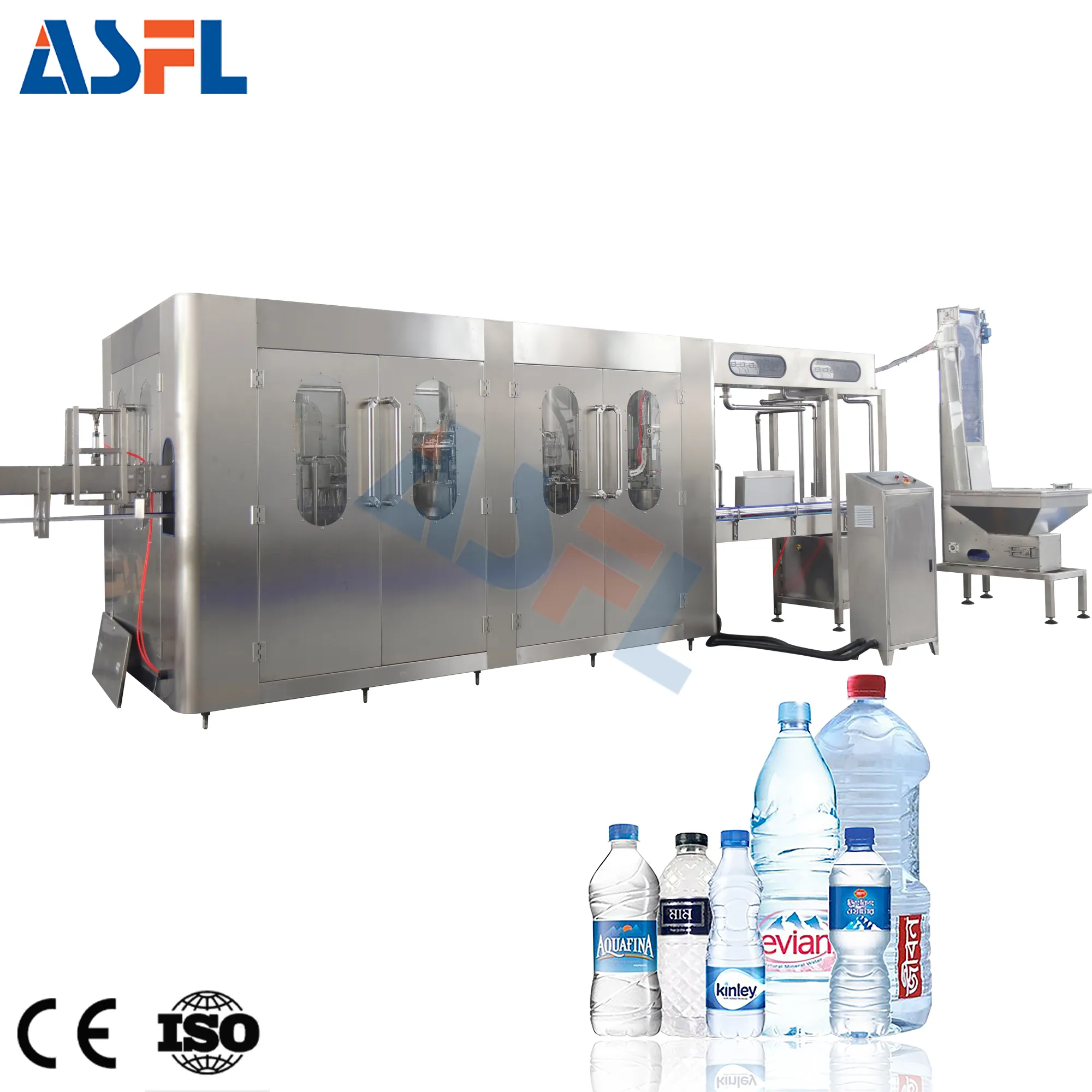

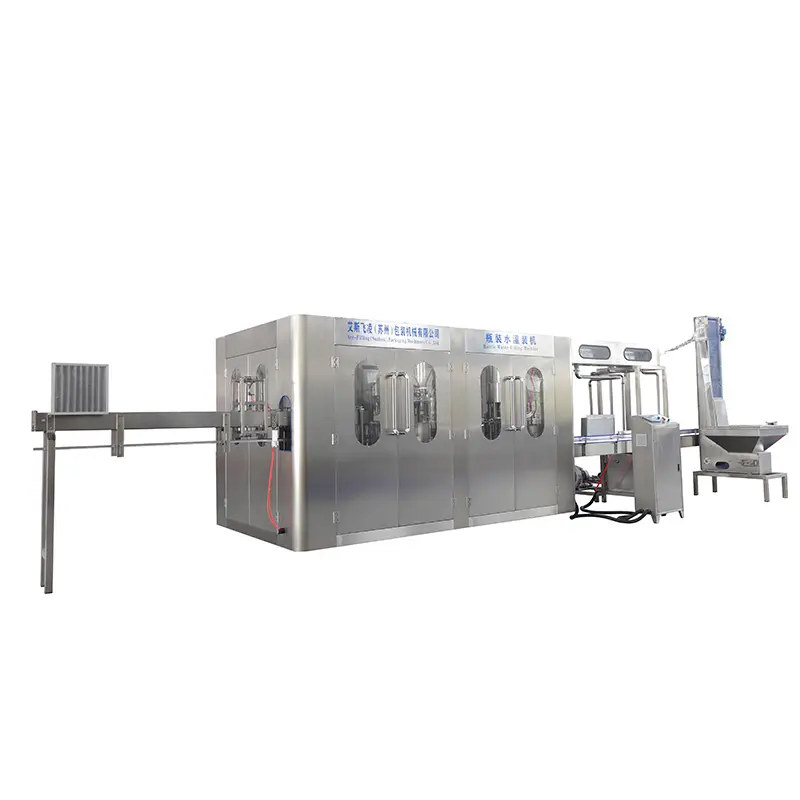

The ASFL CGF Series Water Filling Machine integrates rinsing, filling, and capping into one compact unit. With a suspension bottle-handling design, it easily adapts to different PET bottle shapes and sizes. Beyond water, the system can be adjusted with specialized valves to handle juices and teas under hot-fill conditions, giving producers more versatility.
Multi-Size Adaptability – Handles PET bottles from 200ml to 2000ml, ideal for small to medium bottle ranges.
3-in-1 Integration – Combines rinsing, filling, and capping to streamline production and reduce handling risks.
Flexible Filling Options – Standard for water, with valve adjustments available for hot filling juices and teas.
High-Speed Output – Meets the needs of high-volume bottled water plants while maintaining accuracy.
Complete Line Integration – Seamlessly connects with labeling, shrink wrapping, and palletizing equipment for turnkey production.
User-Friendly Operation – PLC control system and touch-screen interface simplify monitoring and adjustments.
Hygienic Design – Easy-to-clean structure minimizes contamination and supports food-grade production standards.
From drinking water brands to multifunction beverage plants, the ASFL 200–2000ml Water Filling Machine delivers speed, hygiene, and adaptability. Certified to ISO and CE standards, it ensures your bottled water and beverages reach consumers safely, efficiently, and consistently.
Model |
Capacity (500ml, BPH) |
Suitable Bottle Shapes |
Bottle Diameter (mm) |
Compressor Air |
Washing Medium |
Rinsing Pressure |
Total Power (KW) |
Overall Dimensions (m) |
Height (m) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
CGF 8-8-3 |
2500 – 3000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
3.91 |
3.5 × 1.7 |
2.2 |
2000 |
CGF 16-12-6 |
3500 – 4000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
4.61 |
2.2 × 1.9 |
2.2 |
2500 |
CGF 18-18-6 |
4500 – 6000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
4.61 |
2.5 × 2.1 |
2.2 |
3500 |
CGF 24-24-8 |
8000 – 12000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
5.41 |
2.8 × 2.2 |
2.2 |
4500 |
CGF 32-32-10 |
12000 – 14000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
6.41 |
3.5 × 2.3 |
2.25 |
6000 |
CGF 40-40-12 |
15000 – 18000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
9.63 |
4 × 3 |
2.25 |
8000 |
CGF 50-50-12 |
21000 – 24000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
12.5 |
5.5 × 4.5 |
2.25 |
10500 |
CGF 60-60-15 |
26000 – 30000 |
PET circular or square |
50 – 115 |
0.3 – 0.7 Mpa |
Aseptic water |
>0.06 Mpa <0.2 Mpa |
15 |
7 × 6.5 |
2.25 |
13000 |
