Can Filling Machine

Efficient and reliable filling for a wide range of canned beverages.

The Challenge of Can Packaging

From carbonated drinks to fruit juice, cans remain one of the most versatile and cost-effective packaging formats. But without the right equipment, producers face problems like inconsistent fill levels, contamination risks, and unreliable seams that compromise product quality and shelf life.

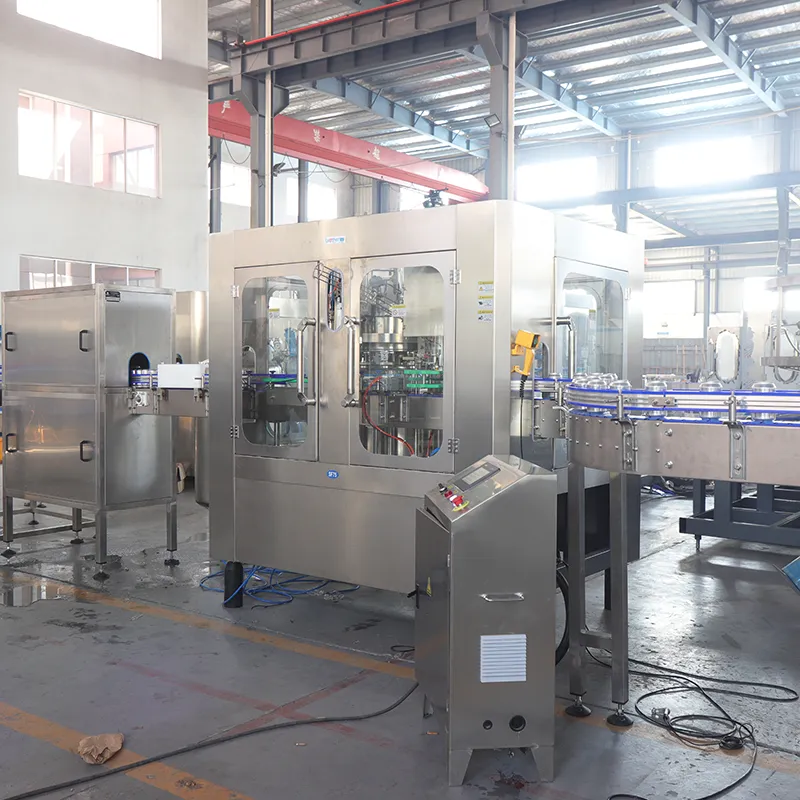

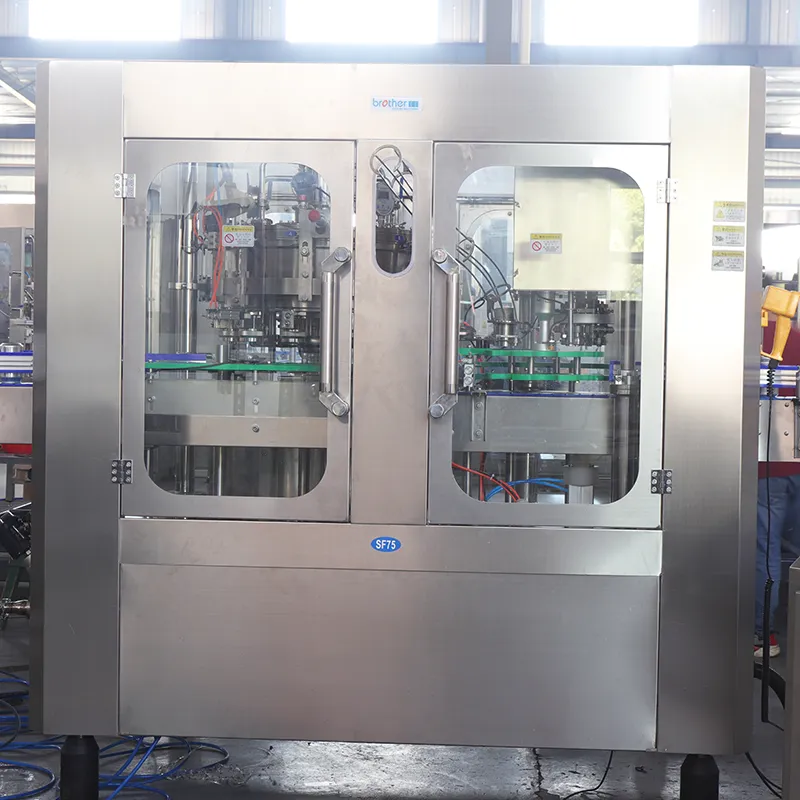

ASFL Can Filling Solution

The ASFL Can Filling Machine is an integrated 3-in-1 system that washes, fills, and seals cans in one continuous process. Designed for carbonated soft drinks, beer, energy drinks, juices, teas, and functional beverages, it delivers consistency at every stage of canning—whether you’re producing in aluminum cans, tin cans, PET cans, or other formats.

Key Features & Benefits

  • Multi-Product Compatibility – Handles carbonated soft drinks, beer, juice, tea, energy drinks, and more.

  • Wide Container Range – Suitable for aluminum cans, pop cans, tin cans, and PET cans.

  • Flexible Filling Methods – Choose from mechanical valve, flow meter, weight-based, or laser-level filling for maximum precision.

  • High-Speed Production – Output ranges from 2,000 to 20,000 cans per hour, serving both small and large producers.

  • Integrated Wash-Fill-Seal – Hygienic and efficient design minimizes contamination risks and reduces handling time.

  • Reliable Seaming – Ensures tight, consistent seals that protect carbonation and extend product shelf life.

Trusted by Beverage Brands

From start-up craft beverage makers to global drink manufacturers, ASFL can filling solutions are trusted worldwide for their speed, accuracy, and reliability. Built to ISO and CE standards, they keep production lines running smoothly and products consistent on every shelf.

Introduction

Model CC GF 12-1 CC GF 18-4 CC GF 24-4 CC GF 32-6 CC GF 40
Capacity can/hour 20 00 80 00 10 000 15 000 20 000
Suitable bottle shapes Pop Can/ Tin Can /Aluminum Can /PET Can
Bottle volume 150ml ~ 1L
Bottle Diameter  50 ~ 99 mm
Bottle height 70-133 mm
Total power (KW) 4.61 4.61 5.41 6.41 9.63
Machine dimensionsm 2.5* 1.9 2.8* 2.15 3.1* 2.5 3.8* 2.8 4.5* 3.3
Height (m) 2.5 2.5 2.5 2.5 2.5
Weight (kg) 3200 4000 4500 6500 8000
